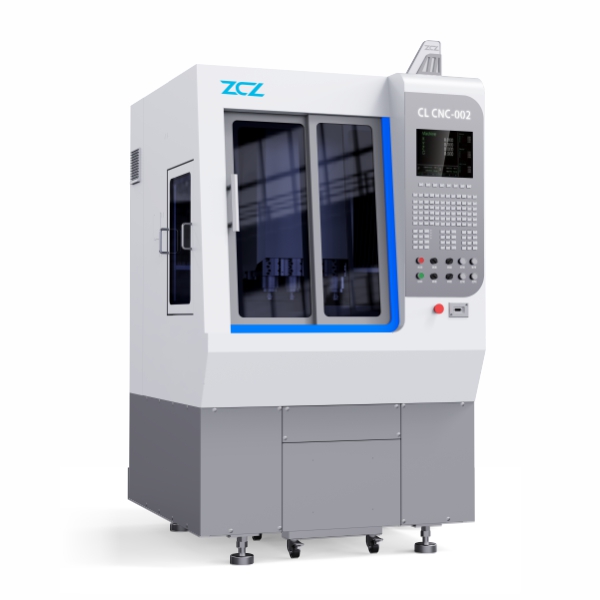

This machine has two working position, one three axis working position, one
four axis / five axis working position.With 3-5 spindle heads, the carving and
milling parts are formed at one time, with high efficiency and good
accuracy.Optional four axis, five axis function. Optional high gloss head,
smooth finish without polishing.Bright and clean.metal fittings, aluminum
frames, Carving and cutting lenses.Acetate frame and so on.
Original Taiwan electric principal axis supporting manufacturer
Taiwan electric spindle manufacturer with original packaging
Alpha 4-axis and 5-axis divider
Taiwan HIWIN screw with original packaging, German Rexroth linear guide rail
Special ultra-hard workbench
3-axis workbench*1
4-axis and 5-axis working positions
It is currently the only five axis multifunctional machine with two workstations and one machine with multiple functions.High gloss finish is bright and bright, achieving mirror effect without polishing and polishing,Optional tool library (8 knives)configuration.
Performance index | standard value |
Table size | 700*420mm |
Positional accuracy of X/Y/Z axes movement | 0.015mm |
The accuracy of repetitive positioning of X/Y/Z/A axes | 0.010mm |
Operating stroke of X/Y/Z axes | 600mm*400mm*300mm |
Distance from spindle face to workbench surface | 115-450(Elevated type300-600) |
Operating system | SYNTEC system +hand box |
Shank mode | ER-11/16 |
Working voltage | 380 V/ Three-phase |
Spindle speed | 20000-60000rpm |
Three-spindle fast moving | 48m/min |
Largest carrying capacity of workbench | 300KG |
Machine tool weight(KG) | 2500KG |
Machine dimension | 1350*1450*2000mm |
