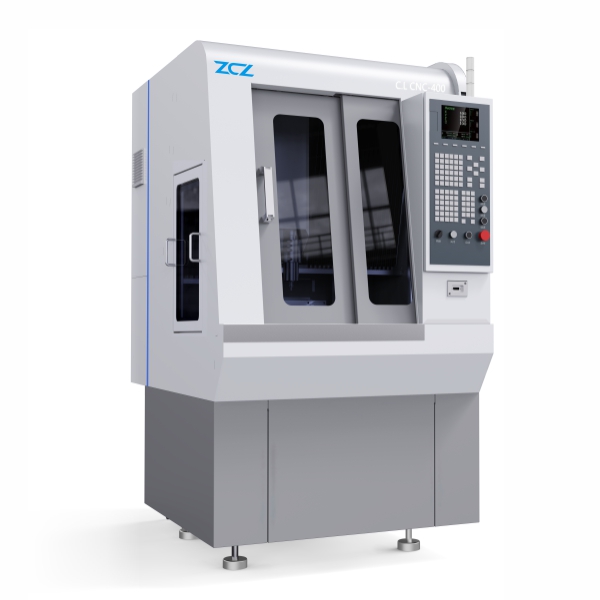

Non-metallic pattern carving, soft metal product processing, TR special machine, doble-station It can realize the simultaneous processing and double processin
Taiwan Delta servo motor
Huadiao electric principal axis*2 *3
4th-axis rotary working platform
It can change the different fixtures and engrave the different types of product.
It can realize the engraving and milling of two similar workpieces and the independent engraving and milling.
It is flexible and convenient and has strong practicality.
The finish is good, and the precision is high.
Performance index | standard value |
Positional accuracy of X/Y/Z axes movement | 0.015mm |
The accuracy of repetitive positioning of X/Y/Z/A axes | 0.010mm |
Operating stroke of X/Y/Z axes | 400mm*300mm*200mm |
A-shaft clamp fourth-axis precision | 0.015mm |
Table size | 450mm*380mm |
Pindle power | 1.5KW*2/1.5KW*3 |
Spindle speed | 3000-24000RMP/3000-60000RMP |
Shank mode | ER16 |
Rapid feed rate | 20m/min |
Working voltage | 220V/50HZ |
Driving system | SYNTEC system +hand box |
Operating system | SYNTEC system +hand box |
Air pressure | 0.6MPA |
Machine tool weight(KG) | 1550KG |
Machine dimension | 1200*1350*1850/1150*1450*2000 |
