C.L-CNC-005

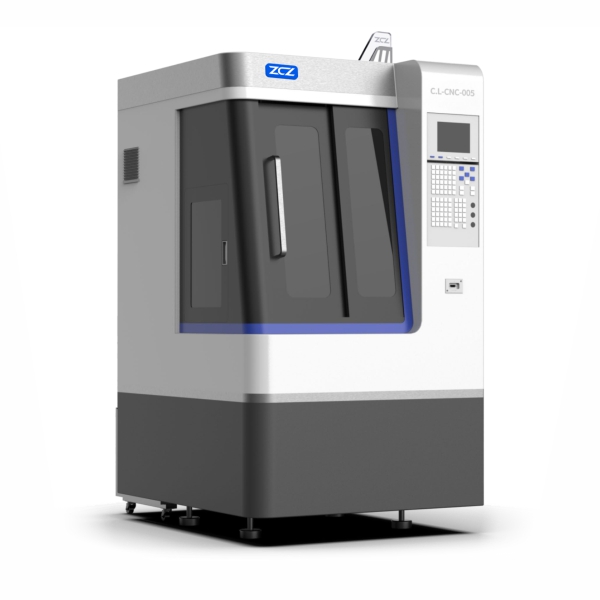

CNC Automatic acetate inner cutting machine
Functions

Automatic acetate inner cutting.

Configuration

  • Original DElTA servo motor

  • Automatic feeding mechanism

  • Huadiao 1.5KW electric spindle

  • Automatic inner mechanism

  • Taiwan HIWIN screw with original packaging, German Rexroth linear guide rail

  • Cooling and circulating system


Advantages

  • Fully automatic feeding,no personnel operation.

  • Flexible and convenient , practical,fast processing speed.

  • The finish is good and accurate.

Technical Parameters
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement0.015mm
Operating stroke of X/Y/Z axes 400mm*300mm*150mm
Table size      450mm*380mm
Spindle power1.5KW
Spindle speed3000-24000RMP
Machine dimension              1200*1250*1850
Shank modeER16
Rapid feed rate 20m/min
Working voltage         220V/50HZ
Driving system     Alternating current servo
Operating system    SYNTEC system +hand box
Air pressure     0.6MPA
Machine tool weight     1550KG
