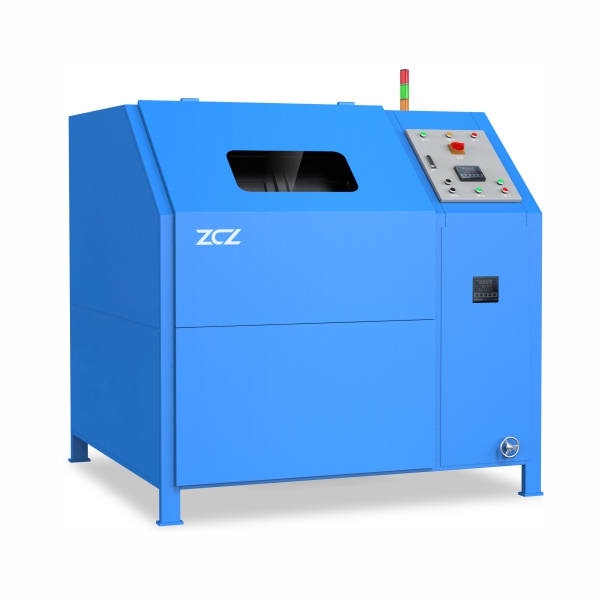

Uniform and bright processed workpieces, speed-regulating frequency conversion, automatic alarm system and PLC humanized control system.
Taiwan brake motor
Original Taiwan decelerator
Original imported Samsung belt
Original Japanese NSK antifriction bearing
Invt high-power inverter
PLC man-machine interface
Humanized digital control the whole machine
Automatic alarm for parts falling off
One-button positioning door opener
Easy operation with racks at the top and bottom
| Performance index | standard value |
| Clamp metal glasses | 480 |
| The spindle speed of big tank | 0-30rpm |
| Rack speed | 5-115rpm |
| Spindle power | 3.5KW |
| The thickness of bamboo board | 25MM |
| Working voltage | 380V/50HZ |
| Operating system | PLC |
| Machine tool weight | 1150KG |
| External dimension | 1650*1550*1700 |
