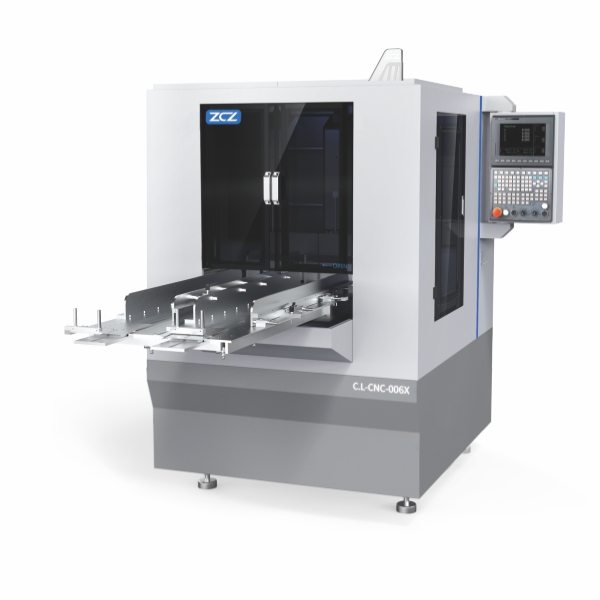

C.L-CNC-006X
Full-automatic intelligent temple planning&cutting
Functions

It can realize the full-automatic intelligent cutting, without moulding. All cutting can be completed at a time, front cutting, temple cutting, end piece cutting and blade nose pad cutting realize the automatic feeding, the number of rubber plates will be calculated automatically, without programming. The intelligent operation is the first step of intelligent production of acetate frame.

Configuration
  • DELTA servo motor *5

  • Huadiao 1.5KW electric spindle*2

  • Longitudinal opening servo automatic device

  • Taiwan HIWIN screw and guide rail with original packaging

  • Japan pneumatic components with original packaging

  • Lateral feeding servo automatic device

  • The chassis is solid and steady


Advantages
  • Horizontal and vertical five-spindle realize the automatic typesetting cutting.

  • With high precision, fast speed, double spindles, 300 pairs can be completed per hour.

  • It can realize the automatic intelligent typesetting, without programming, and realizes the automatic calculation.

Technical Parameter
Performance indexstandard value
Positional accuracy of X/Y/Z axes movement0.015mm
The accuracy of repetitive positioning of X/Y/Z/A axes0.010mm
Operating stroke of X/Y/Z axes500mm*500mm*200mm
Spindle power1.5w×2
Spindle speed1000-24000RMP
Spindle number3000-24000RMP
Shank modeER16
Working voltage220V/50HZ
Driving systemDelta servo x5 shaft
Operating systemSYNTEC system +hand box
Air pressure0.6MPA
Machine tool weight(KG)2000KG
Machine dimension1450*1550*1850mm
